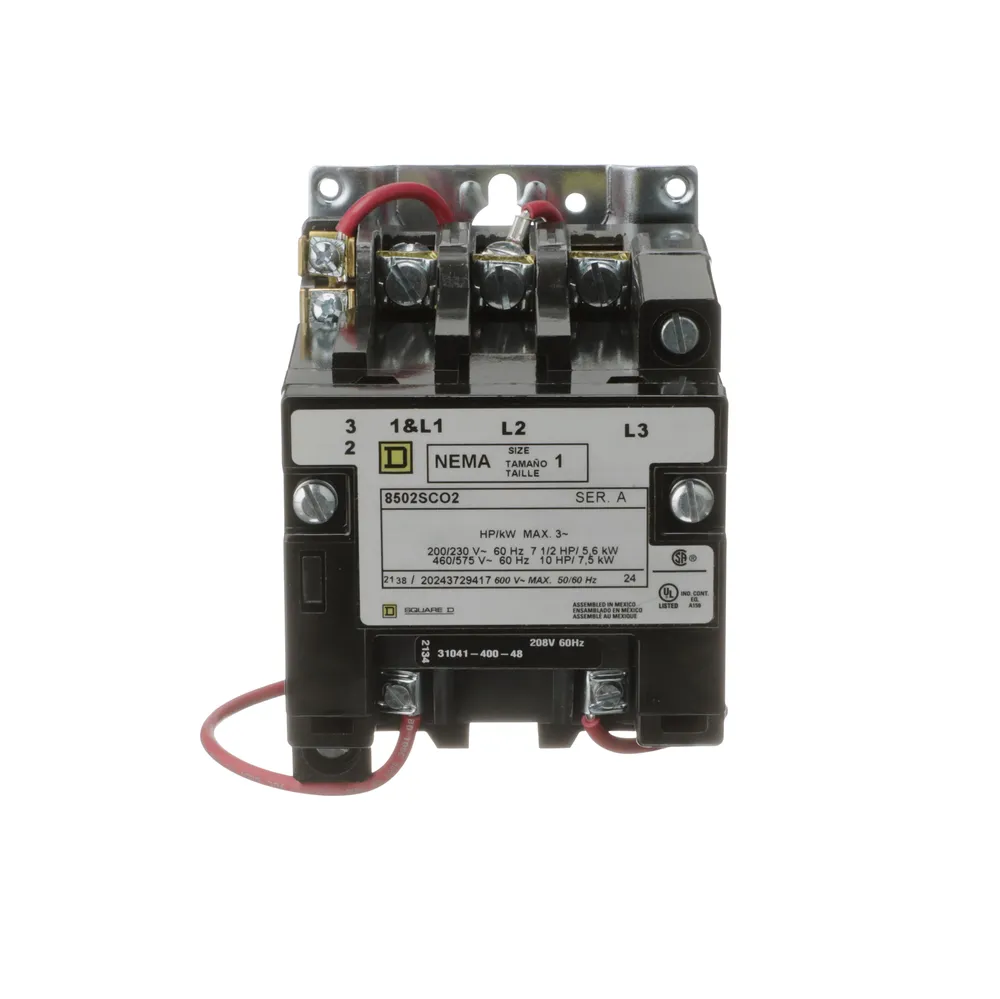

8502SCO2V08 – Square D – Contactor

Overview

Product Specifications – 8502SCO2V08 – Square D Contactor

• Part Number:

  8502SCO2V08

• Manufacturer:

  Schneider Square D Breakers

• Family:

  Class 8502

• Pole:

  3

• Amp:

  27

• Volt:

  208

• Phase:

  3

Product Description – 8502SCO2V08 – Square D Contactor

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 1 non-reversing contactor has a 27 ampere rating. Three phase NEMA Size 1 contactors have 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 208 VAC 60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 4.34 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified
